Precision CNC Swiss Machining Capabilities

Rable Machine’s CNC Swiss machining technology provides live drilling and milling capabilities, and offers one of the most cost-effective and accurate solutions for producing large quantities of very small, highly intricate parts. Our innovative CNC Swiss turning machinery moves parts along a Z-axis while the tools remain stationary (unlike conventional turning, in which the part remains stationary and the tools move). Work pieces are held firmly within the machine, and are advanced through various types of guide bushings to achieve tighter fits and tolerances. In fact, our highly advanced CNC Swiss machining can meet ultra-tight tolerances down to 0.0002".

As only one area of the part is machined at a time, our CNC Swiss screw machining operations greatly diminish deflection and vibration, which helps to further improve machining accuracy. Possessing fully automatic magazine bar-fed technology with part catching and indexing capabilities, our CNC Swiss turning machinery can handle stock lengths up to 12' and works with a wide range of materials up to 1.006" in diameter.

Our ability to provide customers with ultra-precision machined parts is what makes Rable Machine an industry leader, and our dedication to possessing the most advanced CNC Swiss machining technology is one way we stay ahead of our competition. Contact Rable Machine to learn more about our innovative CNC Swiss machining capabilities for the manufacturing of miniature, complex parts.

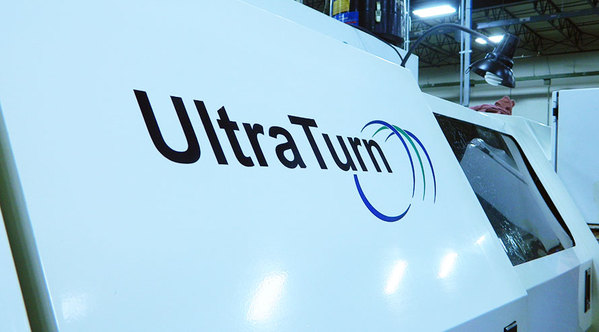

• Rable Machine's Swiss Cell houses eight Citizen and Emco Swiss machines. These machines are all equipped with sub-spindles, live tools and 12 foot capacity automatic bar feeders.
• Our Swiss machines can run parts with diameters up to 1.259" (32mm) and hold tolerances as tight as two microns.
• Typical parts we run on our Swiss machines include things like needle valves, pins, shafts, spacers, standoffs, terminals and electronic hardware.

Industry Focus

Agriculture
Air Conditioning / Compressor
Aircraft
Automation
Automotive
Banking
Construction
Defense
Heavy Equipment
HVAC
Medical
Motorcycle
Oil & Gas
Printing
Pump and Valve
Recreation
Telecommunications

Intended Application

• Needle Valves
• Pins
• Precision Electronic Hardware
• Shafts
• Sleeves
• Spacers
• Standoffs (Hex, Round, Square)
• Terminals

Outer Diameter

Max: 1.006 in

Overall Lengths

Max: 12 in

Tolerance (+/-)

0.0002 in
Precision
Tight Tolerance
Ultra Precision

Professional Associations

(ESOP) since 1992

Production Volume

High Volume
Large Run
Large Scale Production Volume Run
Long Run
Low Volume
Medium Run
Prototype
Short Run
Small Run
Specialty Production Shop

Lead Times Available

Emergency services available
Quoted on job by job basis
Rush Services Available

Industry Standards

AS-Compliant - Aerospace Industry Standard
ISO-9001-2015 - Certified - International Organization for Standardization
Mil-Spec-Compliant - Military Specifications

Additional Capabilities

3D Modeling
CAD Design Services
CAM Programming Services
Reverse Engineering

Equipment Capabilities

12" Magazine Bar Feed Machines
7-Axis Machining Capabilities
Citizen F12 - 1/2"
Citizen F25 - 1"
Citizen L20 - 3/4"
Part Accumulators
Single Spindle

Materials (Metals)

Alloy Steels
Aluminum
Beryllium
Brass
Bronze Alloys
Carbon Steel
Copper
Iron
Stainless Steel
Tin
Titanium
Zinc

Materials (Plastic Polymers)

ABS (Acrylonitrile Butadiene Styrene)
Acetal
Acrylic
Fiberglass Reinforced Plastics
Nylon
Phenolic
Polyamide-Imide
Polycarbonate
Polyetheretherketone (PEEK)
Polyetherimide
Polyethylene
Polyphenylene Sulfide
Polypropylene
Polystyrene
Polysulfone
PTFE (PolyTetraFluoroEthylene)
PVC (Polyvinyl Chloride)
PVDF (Polyvinylidene Fluoride)
Teflon®
